産品簡介
Product Introduction

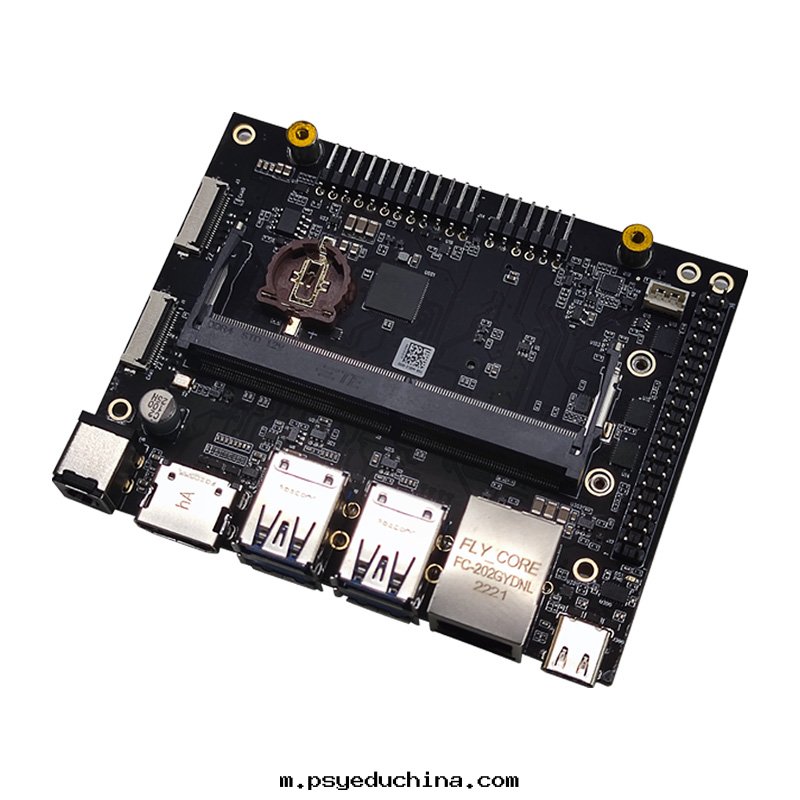

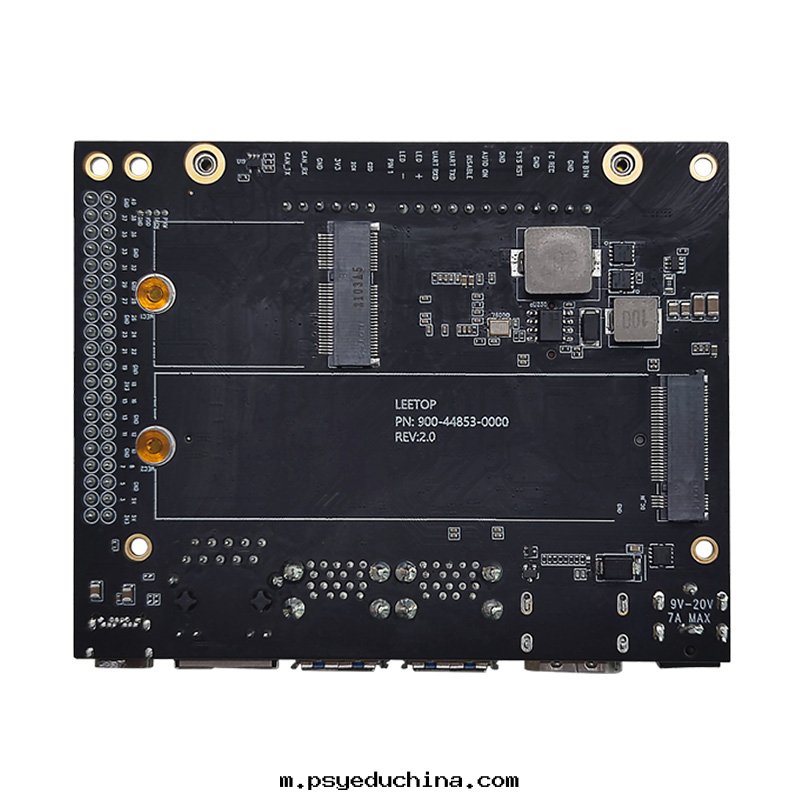

Leetop-A606是基于英偉达 Orin NX 核心闆研發的一款嵌入式人工智能計算機，是一个高性能，接口豐富的NVIDIA Jetson Orin Nx载闆。能夠为衆多终端設備賦予高达 70/100TOPS(INT8)的計算力。同时A606载闆提供快速的主動散热設計，可以滿足抗震防静電等工業标準，载闆還提供了豐富的外围接口。
The Leetop-A606 is an embedded AI computer based on the NVIDIA Orin NXcore board. It is a high performance, interface rich NVIDIA Jetson Orin Nx carrier. Capable of giving computing power up to 70/100TOPS(INT8) to a wide range of terminal devices. The A606 carrier board also provides fast active cooling design, which can meet industry standards such as anti-seismic and anti-static. The carrier board also provides abundant external interfaces.
産品規格 Product Specifications
處理器模組 Processor module
| specifications | ||
| Module | Nvidia Jetson Orin NX 8GB | Nvidia Jetson Orin NX 16GB |
AI Performance | 70 TOPS | 100 TOPS |
| CPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| GPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/ | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storagev | — (Supports external NVMe | — (Supports external NVMe) |
Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Power | 10W - 20W | 10W - 25W |
接口 I/O interface
| 接口 interface | 規格/Specifications |
| DC | 系統開關 System switch |
| Display | 1 x HDMI |
| USB | 4 x USB3.0 Type-A （Integrated USB2.0） 1 x USB 2.0+3.0 Link TYPE C |
| Network | 1xGigabitEthernet (10/100/1000) |
| M.2 KEY E | 1x M.2 KEY E Interface |
| CAN FD | 1 x CAN FD |
| Camera | CSI 2 line |
| M.2 KEY M | 1x M.2(Type 2280) |
供 電 Power Supply
| Power Supply | Spec |
| Input Voltage | +9---+20V DC Input @ 7A |
| ypical consumption | up to 45W |
結 構 Mechanical
| Mechanical | Spec |
| Dimensions (LxW) | 100 x 80.6（mm） |
| Weight | Kg |
环 境 Enviromental
| Environmental | Spec |
| Operating Temperature | -20℃-75℃ |
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Humidity | 10%-90% non-condensing |
