産品簡介：
Product introduction：
Leetop_ALP_206是基于英偉达jetson Xavier NX/Nano/TX2 NX核心闆研發的一款嵌入式人工智能計算機，能夠为衆多终端設備賦予高达472 GFLOPs/1.33 TFLOPs/21TOPS的計算力。Leetop ALP 206提供快速的被動散热設計，可以滿足抗震防静電等工業标準。同时Leetop ALP 206接口豐富，性價比高。
Leetop_ALP_206 is an embedded artificial intelligencecomputer developed based on the NVIDIA jetson XavierNX/Nano/TX2 NX core board, which can provide computingpower up to 472 GFLOPs/1.33 TFLOPs/21TOPS for many terminaldevices. Leetop ALP 206 provides a fast passive heat dissipationdesign, which can meet industrial standards such as shockresistance and anti-static. At the same time, Leetop_ALP 206has rich interfaces and high cost performance
産品規格 Product Specifications
處理器模块 processor module
| Jetson Xavier NX 8GB | Jetson Xavier NX 16GB | |
| AI Performance | 21 TOPS | |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores | |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264) | |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 * | |
| Jetson Nano | Jetson Tx2 NX | |
| AI Performance | 472 GFLOPs | 1.33 TFLOPs |
| GPU | 128-core NVIDIA Maxwell™ GPU | 256-core NVIDIA Pascal™ GPU |
| CPU | Quad-Core Arm® Cortex®-A57 MPCore processor | Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor |
| Video Encode | 1x 4K30 2x1080p60 4x1080p30 4x720p60 9x720p30 (H.265 & H.264) | 1x 4K60 3x 4K30 4x 1080p60 8x 1080p30 (H.265) 1x 4K60 3x 4K30 7x 1080p60 14x 1080p30 (H.264) |
| Video Decode | 1x 4K60 2x 4K30 4x 1080p60 8x 1080p30 9x 720p60 (H.265 & H.264) | 2x 4K60 4x 4K30 7x 1080p60 14x 1080p30 (H.265 & H.264) |
| Memory | 4 GB 64-bit LPDDR4 25.6GB/s | 4 GB 128-bit LPDDR4 51.2GB/s |
| Storage | 16GB eMMC 5.1 | 16 GB eMMC 5.1 |
接口I/O
| 接口 Interface | Interface 規格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0Type C |
| Video output | 1 × HDMI |
| Camera | 2x Camera |
| CAN | 1 × CAN 1CAN（Receive. Transceiver） |
| SPI Bus 1 × SPI Bus(+3.3V Level) | 1 × SPI Bus(+3.3V Level) |
| Power | +13---+19V DC Input @ 8A |
供電 Power Supply
| Power Supply | Spec |
| Input Voltage | +13---+19V DC Input @ 8A |
| Power consumption | 45W |
結構Mechanical
| Mechanical | Spec |
| Dimensions (W×D ×H) | 116x86.7x40.1(mm) |
| Weight | 0.67KG |
环境Environmental
| Environmenta | Spec |
| Operating Temperature | -20℃-70℃ |
| Storage Humidity | 10%-90%Non-condensing environment 非結露环境 |
尺寸示意图Schematic diagram of dimensions

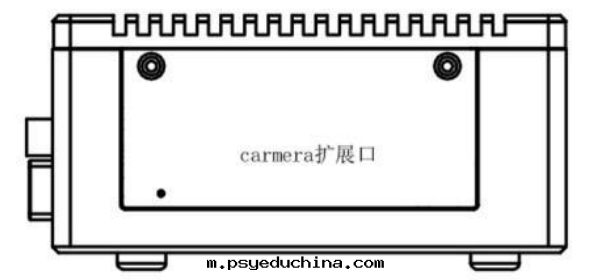

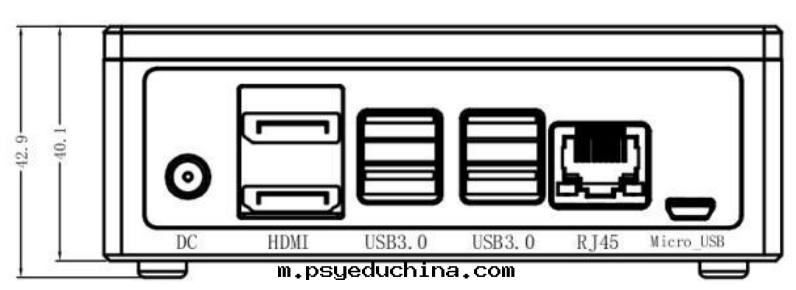

| 正视图 Front view | 左视图 Left view |
 |  |

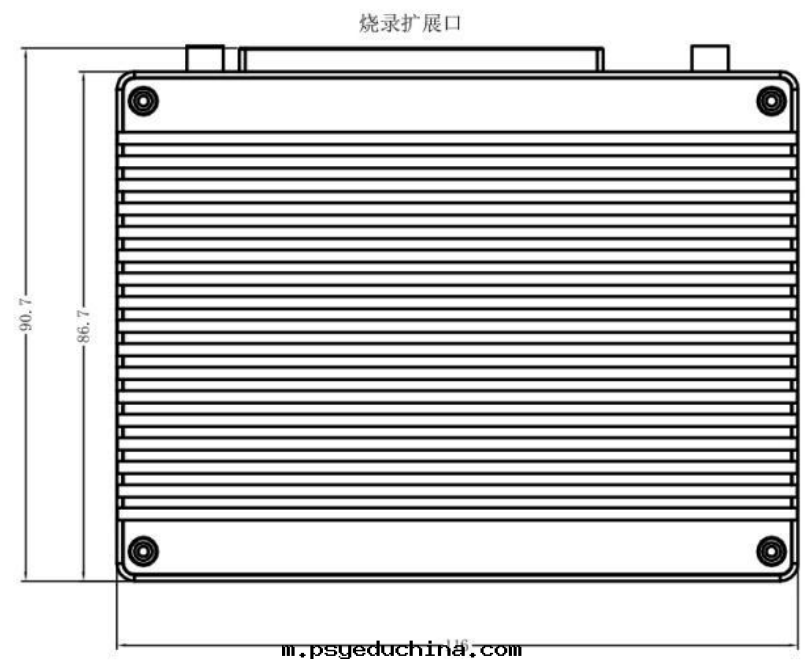

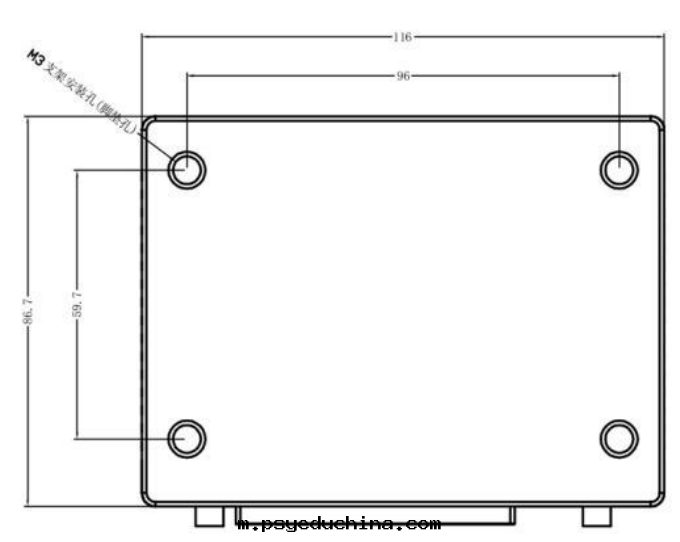

| 俯视图 Up view | 底部图 Bottom view |
 |  |
选配表Matching table
| Product name | Core module | SSD | communication | power |
| ALP_206 | ||||
| J1:Nano | ||||
| J2:Xavier NX(8G) | ||||
| J3:Xavier NX(16G) | ||||
| J4:TX2 NX | ||||
| N | ||||
| 128G | ||||
| 256G | ||||
| 512G | ||||
| 1T | ||||
| N | ||||
| N | ||||
| 01:明緯 | ||||
| 02:定制 |
