産品特點
産品功能
産品簡介：
Leetop_ALP-D4956-F是基于英偉达Jetson Orin NANO/Orin NX模組研發的一款先進的嵌入式人 工智能計算機。該計算機为衆多终端設備提供高达 20/40/70/100TOPs的強大計算能力。搭载Orin NANO/ Orin NX模組，使Leetop_ALP-D4956-F能夠充分發揮 NVIDIA強大的AI软件堆棧、SDK以及软件平台的優势， 成为一款高性能低功耗的嵌入式边緣計算設備，同时滿足 工業标準的抗震和防静電要求。 这款Jetson設備适合用 于開發AI應用、自動駕駛、計算機视覺等场景。
産品規格 ：
處理器模块 ：
| Module | OrinNX8GB | OrinNX16GB |
| AI Performance | 70TOPs | 100TOPs |
| GPU | 1024-coreNVIDIAAmperearchitectureGPUwith 32TensorCores | |
| CPU | 6-coreNVIDIAArm® CortexA78AEv8.264-bitCPU1.5MBL2+4MBL3 | 8-coreNVIDIAArm® CortexA78AEv8.264-bit CPU2MBL2+4MBL3 |
| Memory | 8GB128-bitLPDDR5 102.4GB/s | 16GB128-bitLPDDR5 102.4GB/s |
| Storage | — (SupportsexternalNVMe) | |
| Video Encode | 1x4K60(H.265);3x4K30(H.265) 6x1080p60(H.265);12x1080p30(H.265) | |
| Video Decode | 1x8K30(H.265);2x4K60(H.265) 4x4K30(H.265);9x1080p60(H.265) 18x1080p30(H.265) | |
| CSICamera | Upto4cameras(8viavirtualchannels***) 8lanesMIPICSI-2D-PHY2.1(upto20Gbps) | |
| Display | 1x8K60multi-modeDP1.4a (+MST)/eDP1.4a/HDMI2.1 | |
| USB | 3xUSB.3.2Gen2(10.Gbps)3xUSB2.0 | |
| Power | 10W-20W | 10W-25W |
| Module | OrinNano4GB | OrinNano8GB |
| AI Performance | 20TOPS | 40TOPS |
| GPU | Amperearchitecture 512-coreNVIDIA GPUwith 16TensorCores | AmperearchitectureGPU 1024-coreNVIDIA with 32TensorCores |
| CPU | 6-coreArm®Cortex®-A78AEv8.264-bitCPU 1.5MBL2+4MBL3 | |
| Video Encode | 1080p30supportedby1-2CPUcores | |
| Video Decode | 1x4K60(H.265) 2x4K30(H.265) 5x1080p60(H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
| Power | 7W - 10W | 7W - 15W |
規格：
| Feature | Specification |
| Module Compatibility | Jetson Orin NANO/Orin NX |
| Display | 1x HDMI |
| Ethernet | 5x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0Type A (Integrated USB2.0) 1x USB2.0+3.0 TYPE C |
| 20PIN IO CON | 20PIN Multi-function |
| Function key | 1x Power key;1xRecovery key ;1xReset key |
| DC | power interface |
| Project | Specification |
| Input Voltage | +12--+36VDC Input NO PSE Device（Max 80W）,With PSE Device(Max 150W) |
| Load capacity | Above 90W |
| Dimensions (W×D ×H) | 211x126.7x67.25(mm) |
| Operating Temperature | -25℃- 65℃ |
| Storage Temperature Humidity | -20 ℃ -65 ℃ 10% -90% Non condensation environment |
産品結構图：

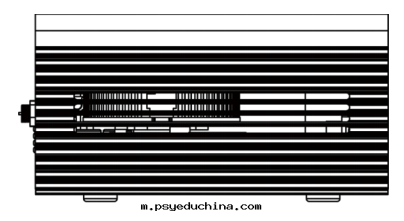

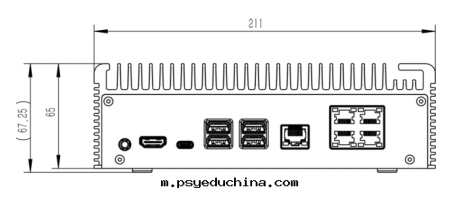

| 正视图 | 左视图 |
 |  |

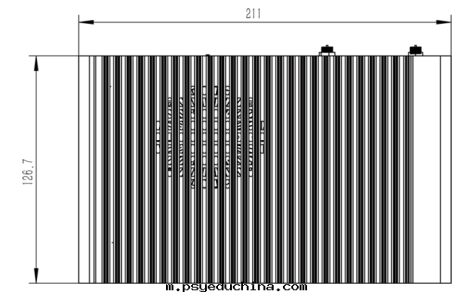

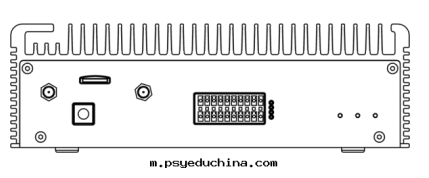

| 俯视图 | 后视图 |
 |  |
