産品簡介：
Leetop_ALP606是基于英偉达Orin NX核心闆研發的一款嵌入式人工智能計算機，能夠为衆多终端設備賦予高达70/100TOPS的計算力Leetop_ALP_606提供快速的被動散热設計，可以滿足抗震防静電等工業标準。同时Leetop_ALP_606接口豐富，性價比高。
Leetop_ALP_606 is an embedded artificial intelligencecomputer based on NVIDIA Orin NX core board, which canprovide up to 70/100TOPS computing power to many terminaldevices. Leetop_ALP_606 provides fast passive heat dissipationdesign, which can meet industrial standards such as seismic andanti-static. At the same time, Leetop_ALP_606 interface rich,high cost performance.
産品規格：
處理器模块：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O：
| 接口 Interface | 規格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 3x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.2 Type A 1x USB 2.0 +3.2Type C |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（接.收發器） |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| M.2 KEY M | 1x M.2KEY M |
| power | +9--+20V DC Input@7A |
供電 Power Supply：
| Power Supply | Spec |
| Input Voltage | +9--+20V DC Input @7A |
| power consumption | 60W |
結構 Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 116x86.7x37.91(mm) |
| Weight | 531g |
环境 Environmental：
| Environmental | Spec |
| Operating Temperature | -20℃-75℃ |
| Storage Humidity | 10%-90% non-condensing 非結露环境 |

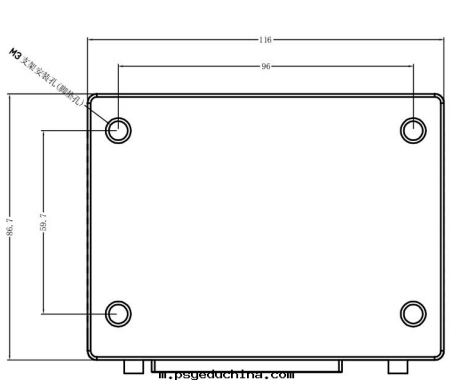

尺寸示意图 Schematic diagram of dimensions：

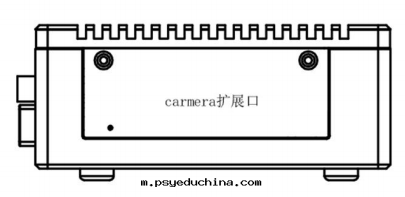

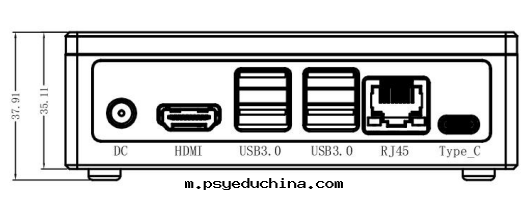

| 正视图 Front view | 左视图 Left view |
 |  |

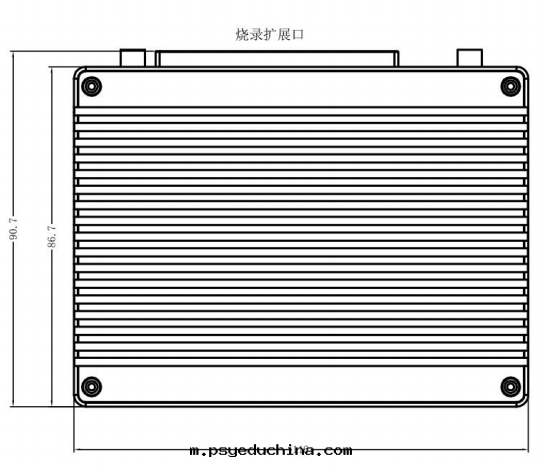

| 俯视图 Up view | 后视图 Rear view |
 |  |
